Training PDMS Administrator

DESCRIPTION

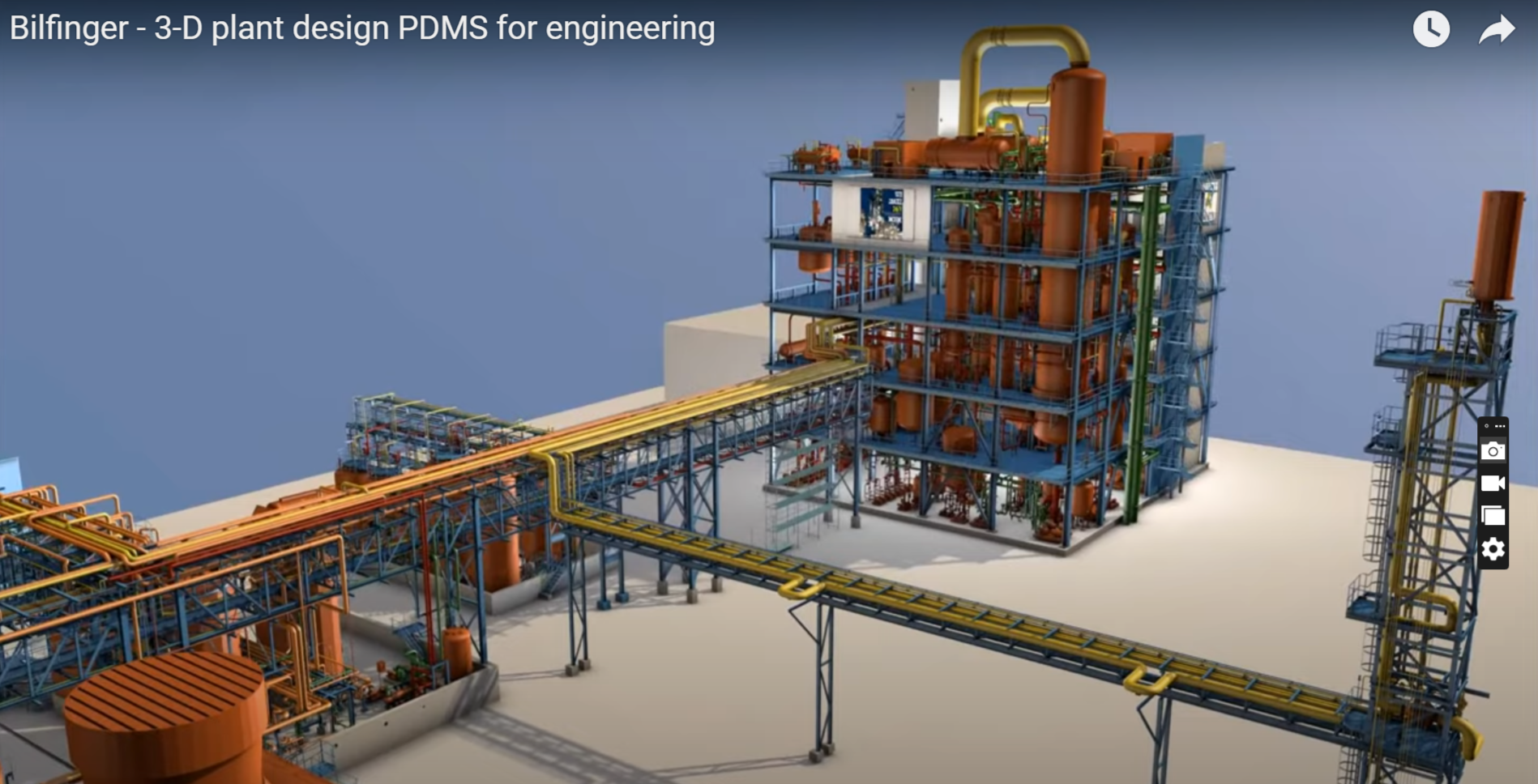

AVEVA PDMS is 3D software that allows a structure designer to more easily design structures, by utilizing various sophisticated applications contained in the program module. This training provides special training for Structural Modeling and the use of applications contained in the design module.

Designers progressively create a highly intelligent 3D design by selecting and positioning parametric components from an extensive catalogue. Clash checking and configurable integrity checking rules help a designer create ‘right first time’ design and enable effective overall design quality assurance. Aveva PDMS design delivers maximum productivity and capability on all type of plant project, from smallest upgrade to new build projects of unlimited size and complexity.

The PDMS administration is a software customization of PDMS software. After Completing this software you can able to create project, catalogue and spec like valve , Special instrument , and not only creating the component also you can customize isometric drawing sheet through Isoadmin. At the end of the course you will perform all task given in the company. Because our teaching will be practically to our student. Kindly refer the syllabus below which we are going to cover in the course.

This course is for next level of PDMS designer who wants to upgrade their knowledge in PDMS.

Who should join Training PDMS Administrator course by Oil Institut?

This course will specifically benefit:

• PDMS Designer

• PDMS Drafter

• Modeller 3D

CONTENT COURSE:

• System Administration

• PDMS Administrator Workscope

• Database Acces Control (DAC)

• Setup Database with excel

• Isodraft setup and Draft Setup

• Create Backing sheet for Isodraft & Draft

• Creation Isometric symbol

• Setup isodraft

• Creation draft symbol library

• Setup ADP Draft

• Cat & Specs Part I

• Piping Catalogue Database

• Coding system

• Connection Compability (COCO) Table

• Component Creation

• Point Set, Geometry Set & Data Set

• Creating Text description

• Creating Component Isulation & Specification

• Cat & Specs Part II

• User Defined Attribute (UDA)

• Component Weight

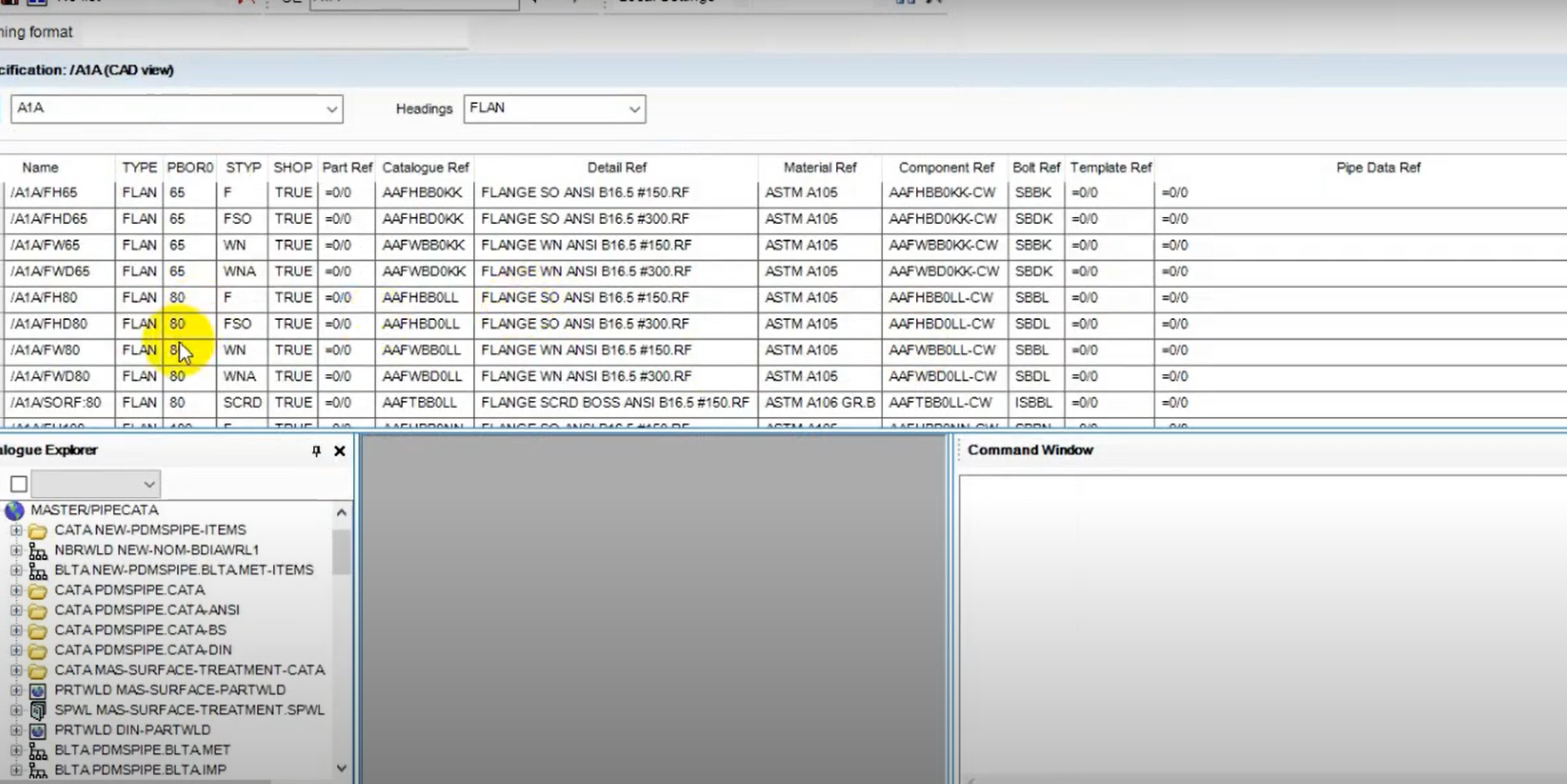

• Creating Piping Specification with Excel

• Reporting Costumization

DURATION  COURSE:

3 days

 @8 hour / day

SCHEDULE COURSE

June, 20024

July,2024

August, 2024

September,2024

October, 2024

November,2024

December, 2024

*Start the course the first week of every month
